Heat Pumps System
A heat pump system provides low-carbon space heating and domestic hot water by extracting renewable energy from air or ground and upgrading it via a vapour-compression refrigeration cycle. The system is electrically driven and delivers significantly higher thermal output than electrical input, typically achieving a Seasonal Coefficient of Performance (SCOP) of 2.5–4.5, depending on design conditions.
System Architecture

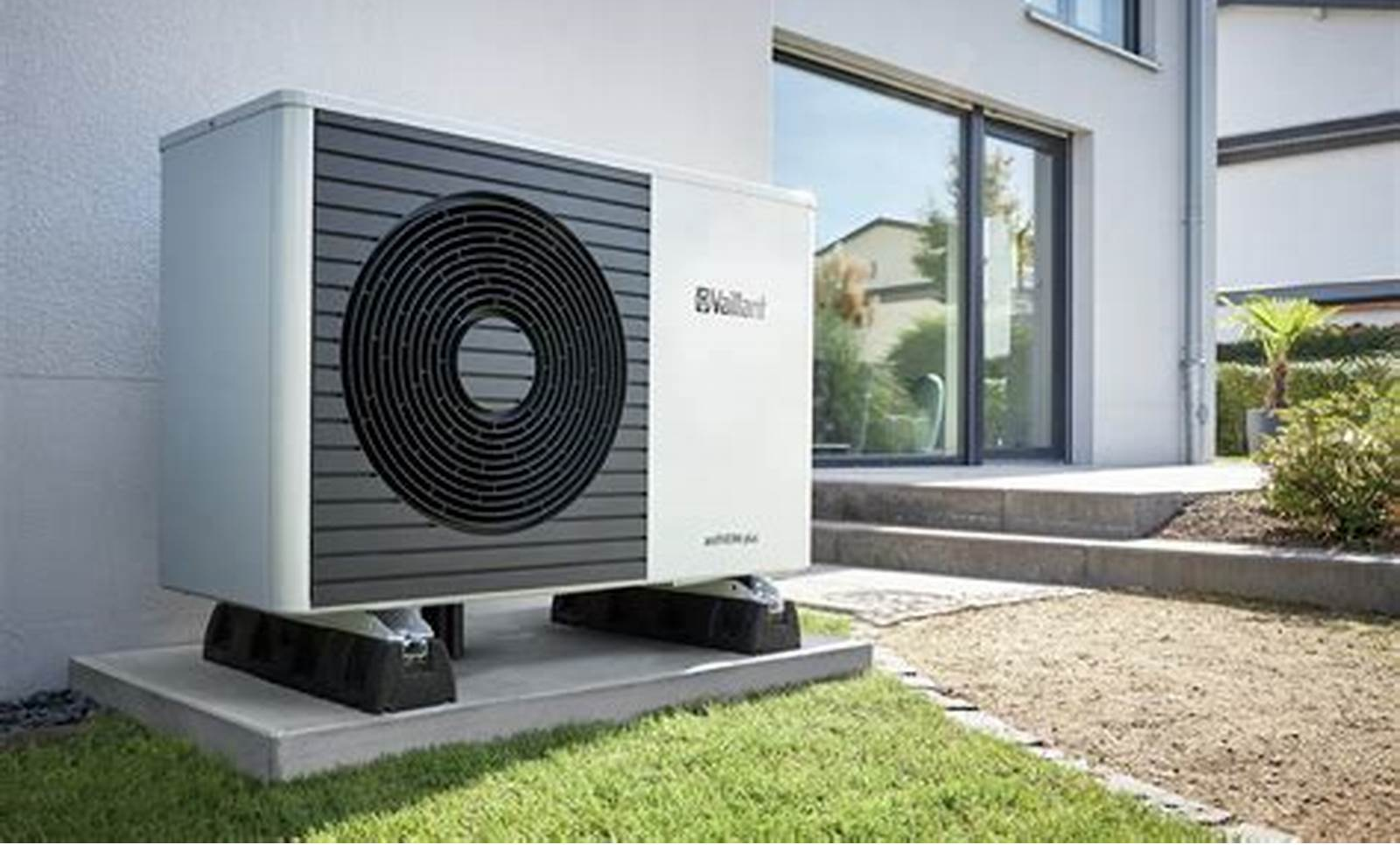

- External air source unit or ground loop array (horizontal collector or vertical boreholes)
- Inverter-driven compressor
- Plate heat exchanger (condenser)
- Hydraulic module with circulation pumps
- Buffer vessel (where required for system stability)
- Indirect DHW cylinder
- Weather-compensated control system
Design Considerations
1. Heat Loss & System Sizing
- Accurate room-by-room heat loss calculations (BS EN 12831 / MCS methodology) are critical to prevent oversizing and maintain efficiency. System output must meet design temperature requirements while operating at the lowest practical flow temperature.
2. Flow Temperatures
- Heat pumps operate most efficiently at 35–45°C flow temperatures. A fabric-first approach and low-temperature emitters (particularly underfloor heating) are recommended to optimise performance.
3. SAP & Part L Compliance
- Heat pumps significantly reduce dwelling emission rates (DER), supporting Part L compliance and improving EPC ratings. They are often central to low-energy and net-zero strategies.
4. Electrical Infrastructure
- Electrical load assessment is required early in the design phase. Larger dwellings or multi-unit projects may require three-phase supply consideration.
5. Acoustic & Planning
- Air source systems must meet permitted development sound limits. Early placement planning avoids boundary and façade conflicts.
6. Integration Opportunities
- Solar PV for improved operational efficiency
- Battery storage for demand management
- MVHR to reduce heat demand in airtight dwellings
- Smart zoning and weather compensation controls
Heat Distribution Strategy
Heat pumps are most efficient in low-temperature systems:
- Underfloor heating (UFH): 30–40°C flow temperature (optimal)
- Low-temperature radiators: 40–50°C flow (sized to design heat load)
Emitter sizing must align with BS EN 12831 heat loss calculations to maintain target indoor design temperatures at local external design conditions.
Domestic Hot Water (DHW)
- Typical cylinder temperatures: 45–55°C
- Legionella protection achieved via periodic thermal disinfection cycles
- Larger dwellings may require volumetric assessment to avoid performance degradation during peak demand
Electrical Requirements
- Typically single-phase for domestic units (3–16 kW range)
- Larger properties or multi-unit systems may require three-phase supply
- Starting currents mitigated by inverter-driven compressors
- Early coordination with DNO recommended for larger developments
Regulatory & Compliance Integration
- Supports Part L carbon reduction targets
- Reduces Dwelling Emission Rate (DER) within SAP assessments
- MCS-compliant installations required for government incentive eligibility
- Acoustic compliance required under permitted development (MCS 020 calculation method for ASHP)
Design Coordination Considerations
- Early-stage plant location planning (clearances, airflow, maintenance access)
- Ground array design and thermal conductivity testing (for GSHP)
- Integration with MVHR in airtight dwellings to reduce space heating demand
- PV integration to improve operational carbon intensity
- Hydraulic separation strategies in mixed emitter systems
Application Suitability
- New-build residential and multi-unit developments
- Low-energy or Passivhaus-style designs
- Retrofit projects with fabric upgrades
Strategic Role in Building Performance
Heat pumps shift the building from combustion-based heating to electrified, renewable-ready infrastructure — aligning with decarbonisation targets and future grid transitions.
Our team will help you navigate our product range to select the most suitable heat pump for your project.
FAQs
How is system sizing determined?
System capacity is calculated using a full room-by-room heat loss assessment in accordance with MCS and BS EN standards. This ensures correct output at design temperature and avoids oversizing, which can reduce system efficiency.
What flow temperatures do heat pumps operate at?
Heat pumps operate most efficiently at low flow temperatures, typically between 35–50°C. Systems are therefore designed around low-temperature emitters such as underfloor heating or appropriately sized radiators.
What Coefficient of Performance (COP) can be expected?
Typical COP ranges from 2.5 to 4.5 depending on system type, design conditions, and emitter temperatures. Seasonal performance is expressed as SCOP, reflecting real-world annual efficiency.
How does a heat pump support Part L compliance?
Heat pumps significantly reduce dwelling carbon emissions and primary energy demand, supporting SAP calculations and compliance with Approved Document Part L. They are commonly integrated into fabric-first strategies.
What electrical supply is required?
Most domestic air source heat pumps require a single-phase supply, though larger systems may require three-phase. Load calculations are carried out to confirm compatibility with existing infrastructure.
Can heat pumps be integrated with renewable technologies?
Yes. Heat pumps integrate effectively with solar PV, battery storage, and smart controls to optimise self-consumption and reduce grid reliance.
How is domestic hot water (DHW) managed?
Heat pumps supply DHW via an indirect cylinder, typically operating at 45–55°C, with periodic legionella protection cycles in line with regulations.
What are the noise considerations?
External units must comply with permitted development acoustic limits. Sound pressure levels are assessed based on unit specification and proximity to neighbouring boundaries.
What maintenance requirements apply?
Annual servicing is recommended to maintain performance, warranty validity, and refrigerant system compliance.
Are heat pumps eligible for government incentives?
MCS-certified installations qualify for applicable government schemes, including the Boiler Upgrade Scheme (where available), subject to eligibility criteria.
